Bunks
Standard, bottomless, and fenceline.

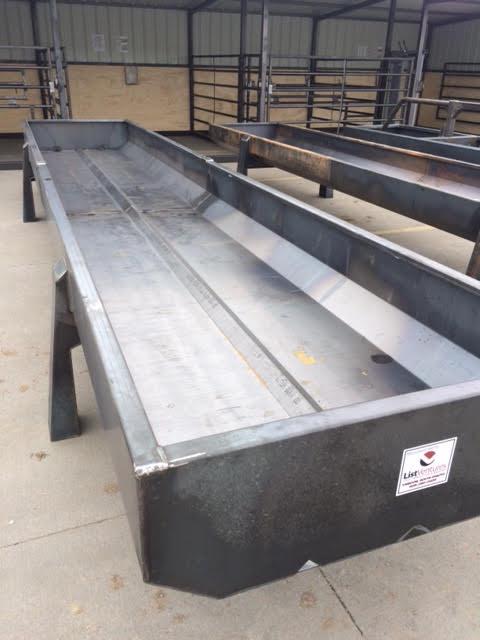

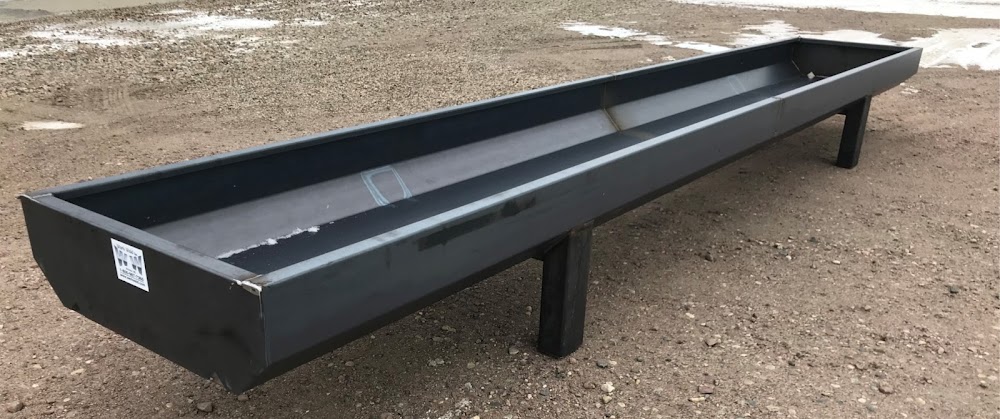

List Ventures

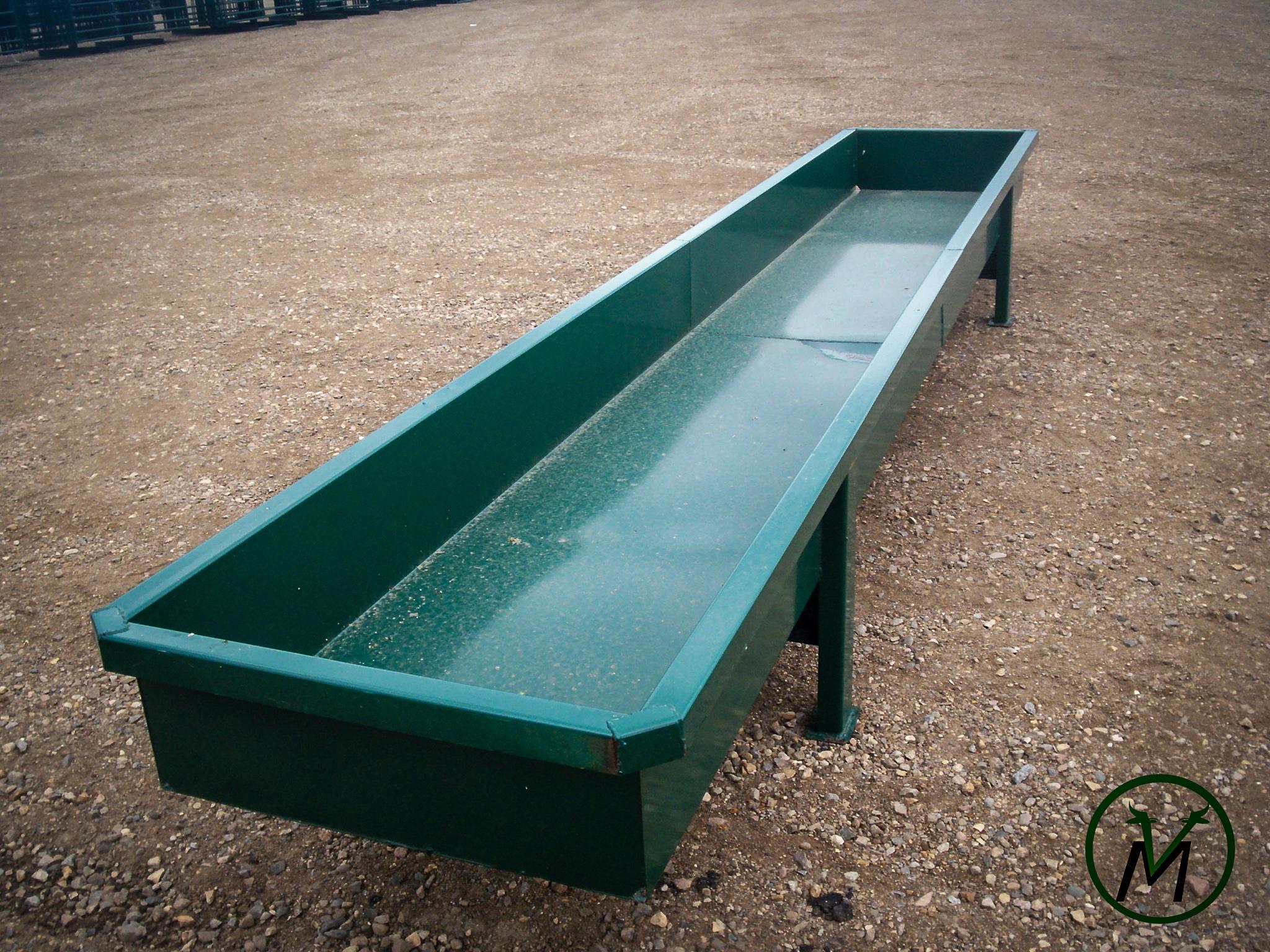

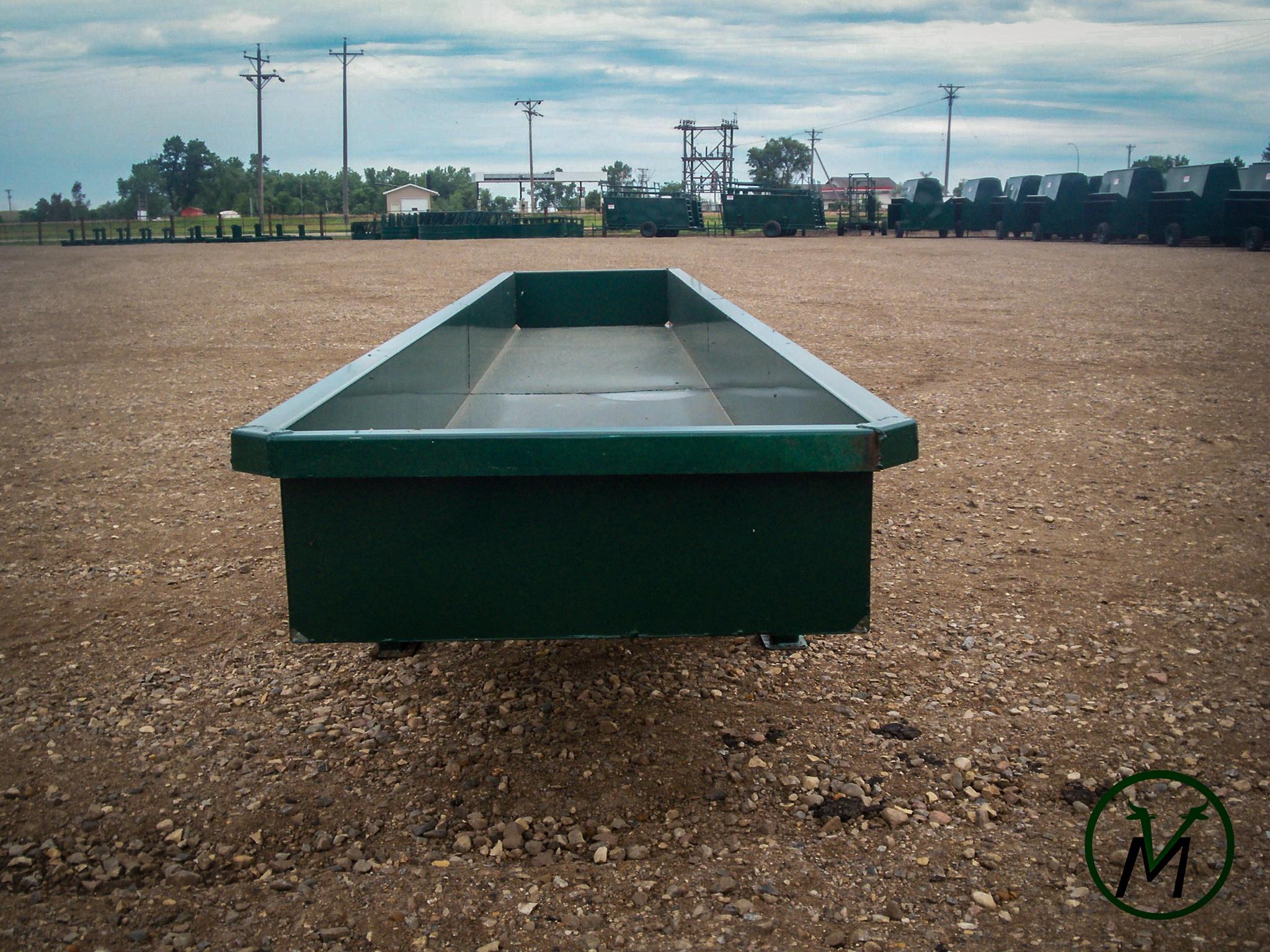

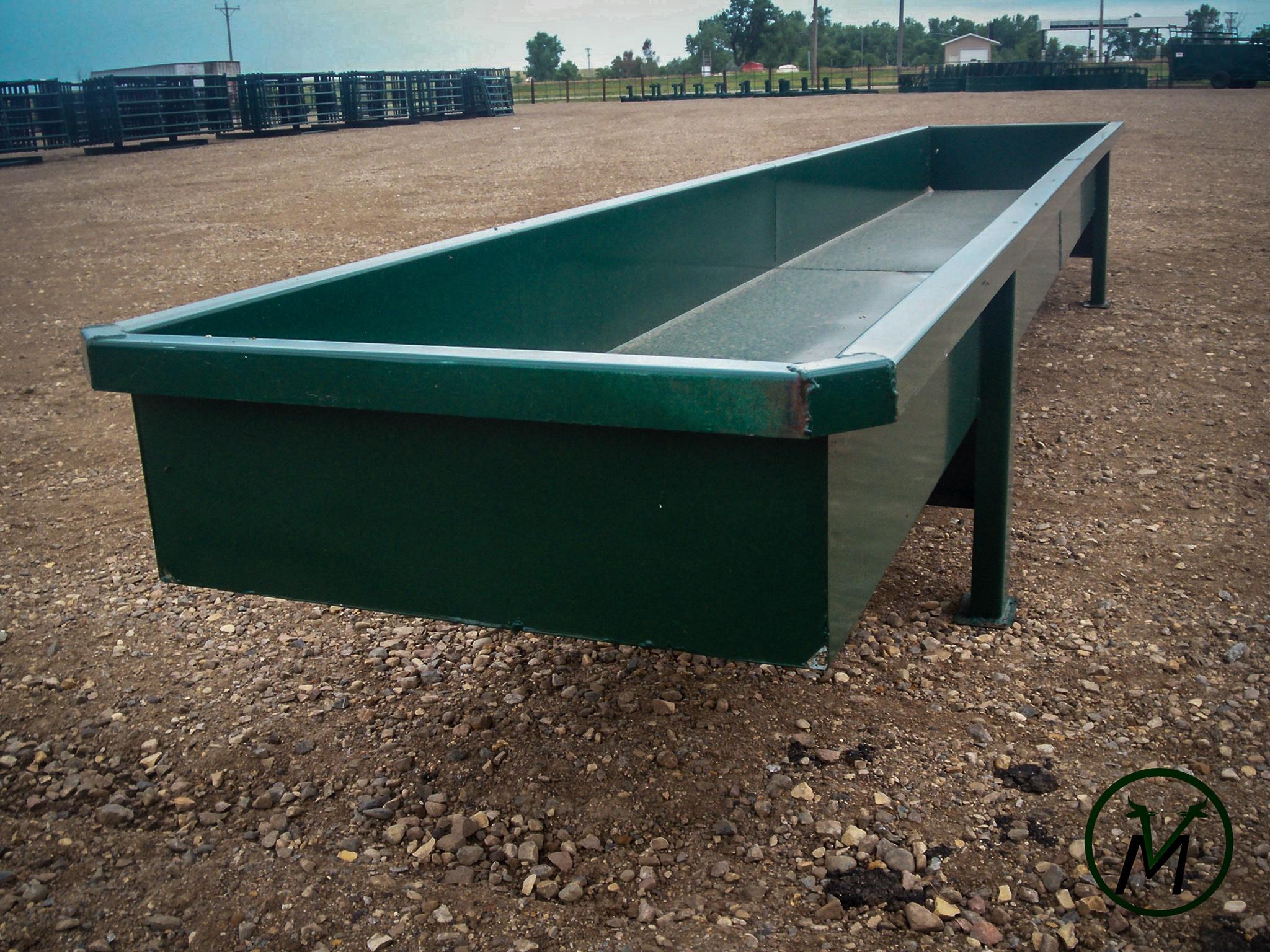

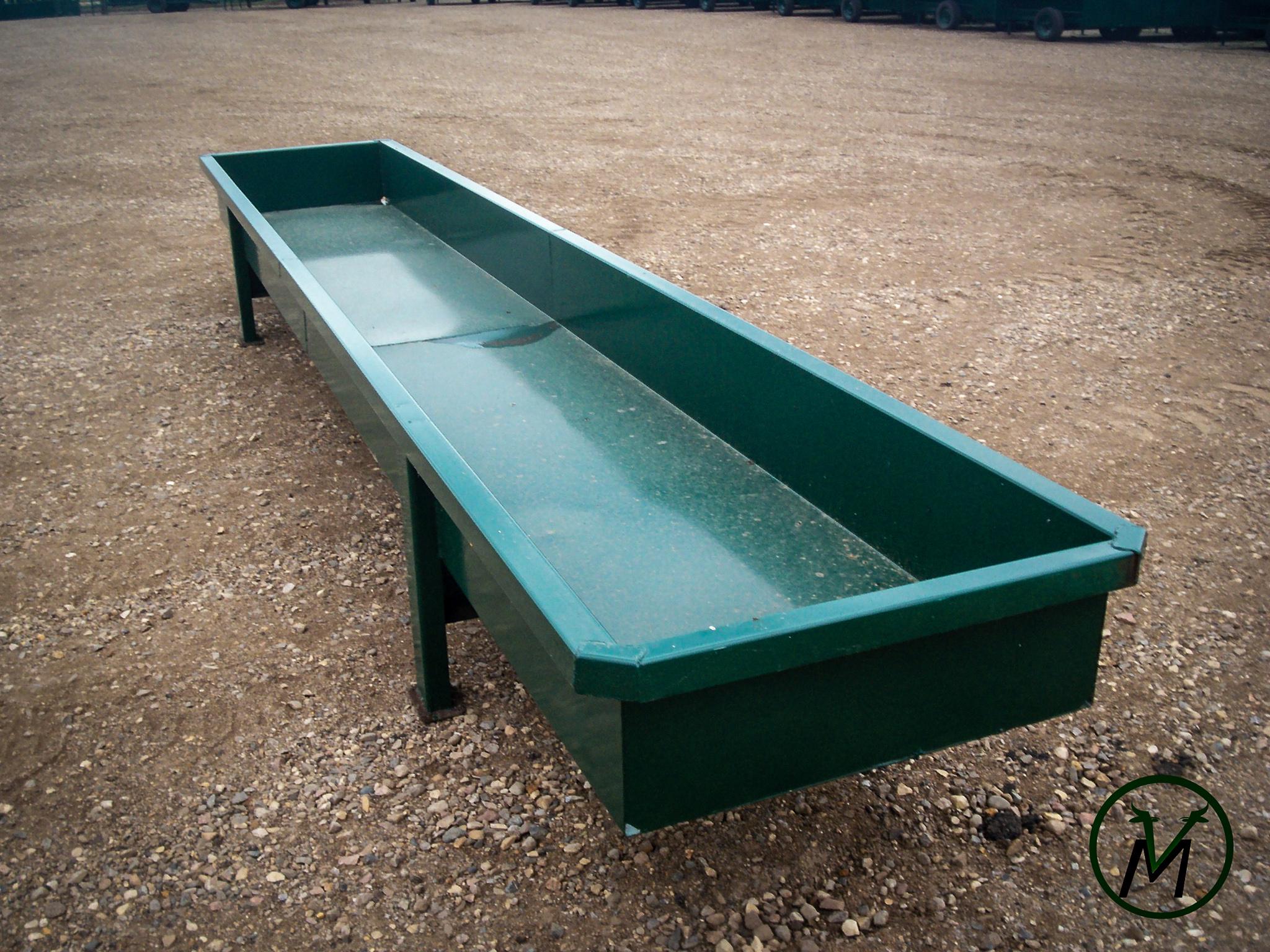

Verns Manufacturing
Troughs made from 14 GA steel, and legs formed from 10 GA.
8" deep, 24" wide, and 24" tall comes in lengths of 4’, 8’, 12’, and 16'.
11" deep, 30" wide, and 24" tall comes in lengths of 4’, 8’, 12’, and 16'.
Werk Weld

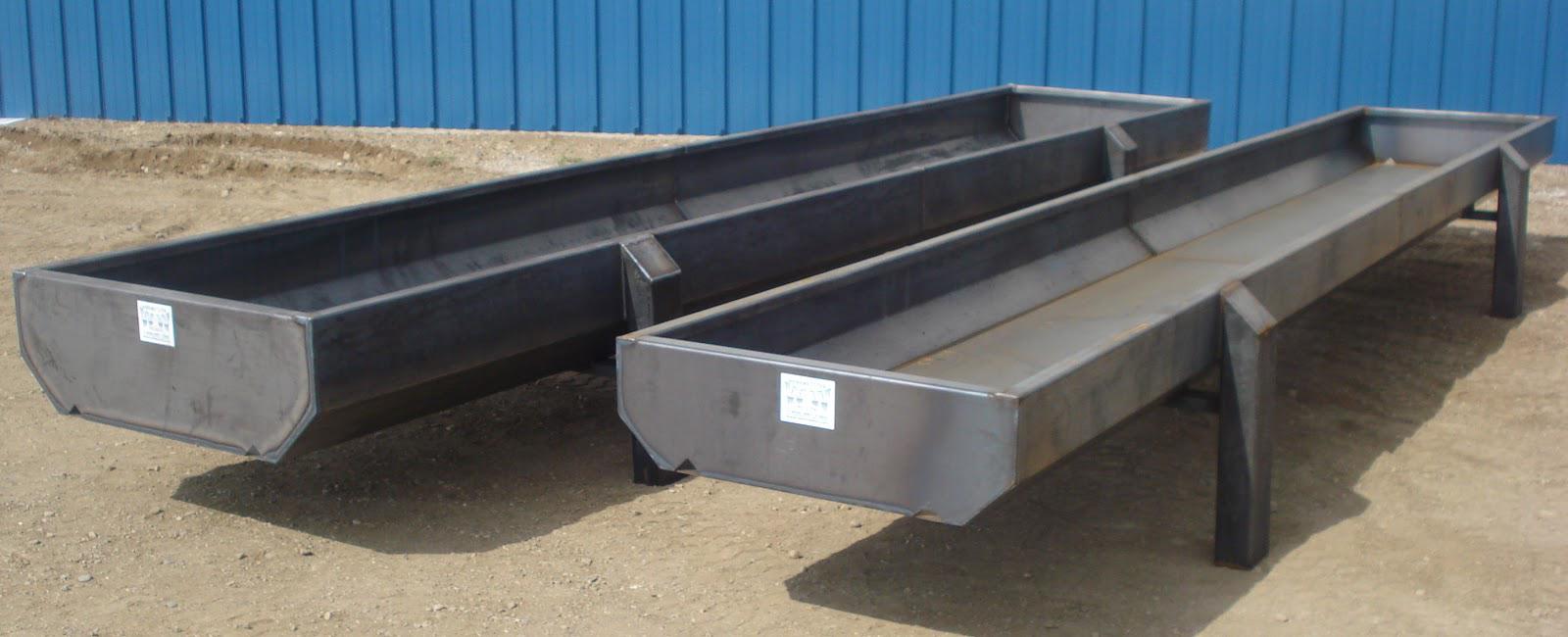

Standard
Heavy metal feed bunks are made of 10 gauge sheet material with rectangular tubing legs capped on the top and bottom. Top lip is formed in and down to keep the feed in the bunk. Two drain holes in both ends. Available painted or unpainted. Leg under bunks also available.
Approximate Sizes
- 31" x 8" x 16'
- 38" x 12" x 20'
- 45" x 15" x 20'
- (Custom lengths available)

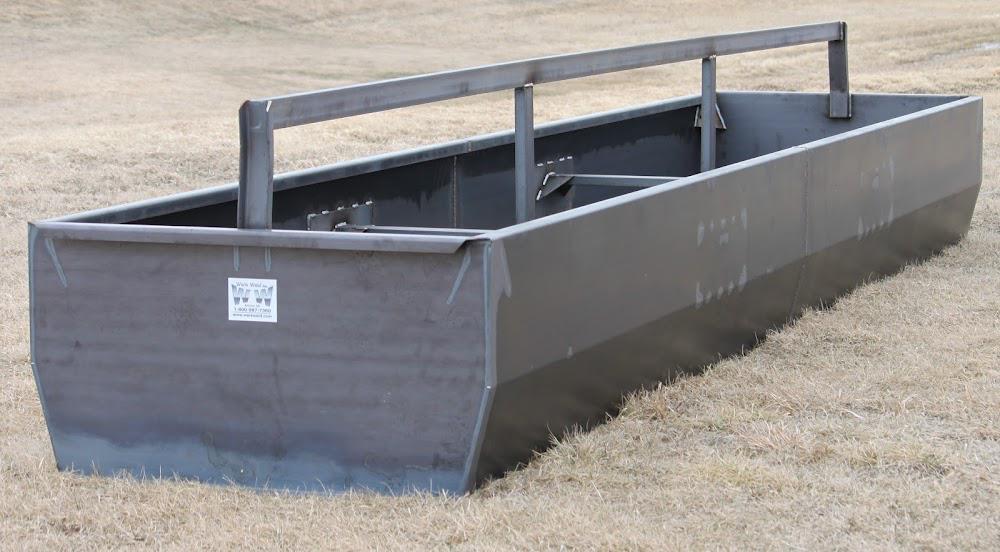

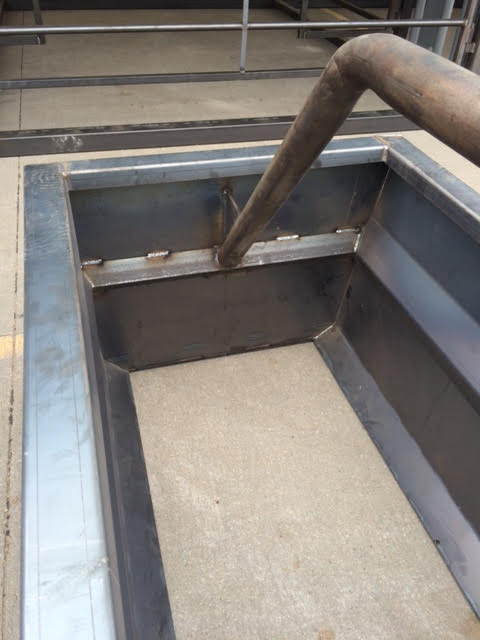

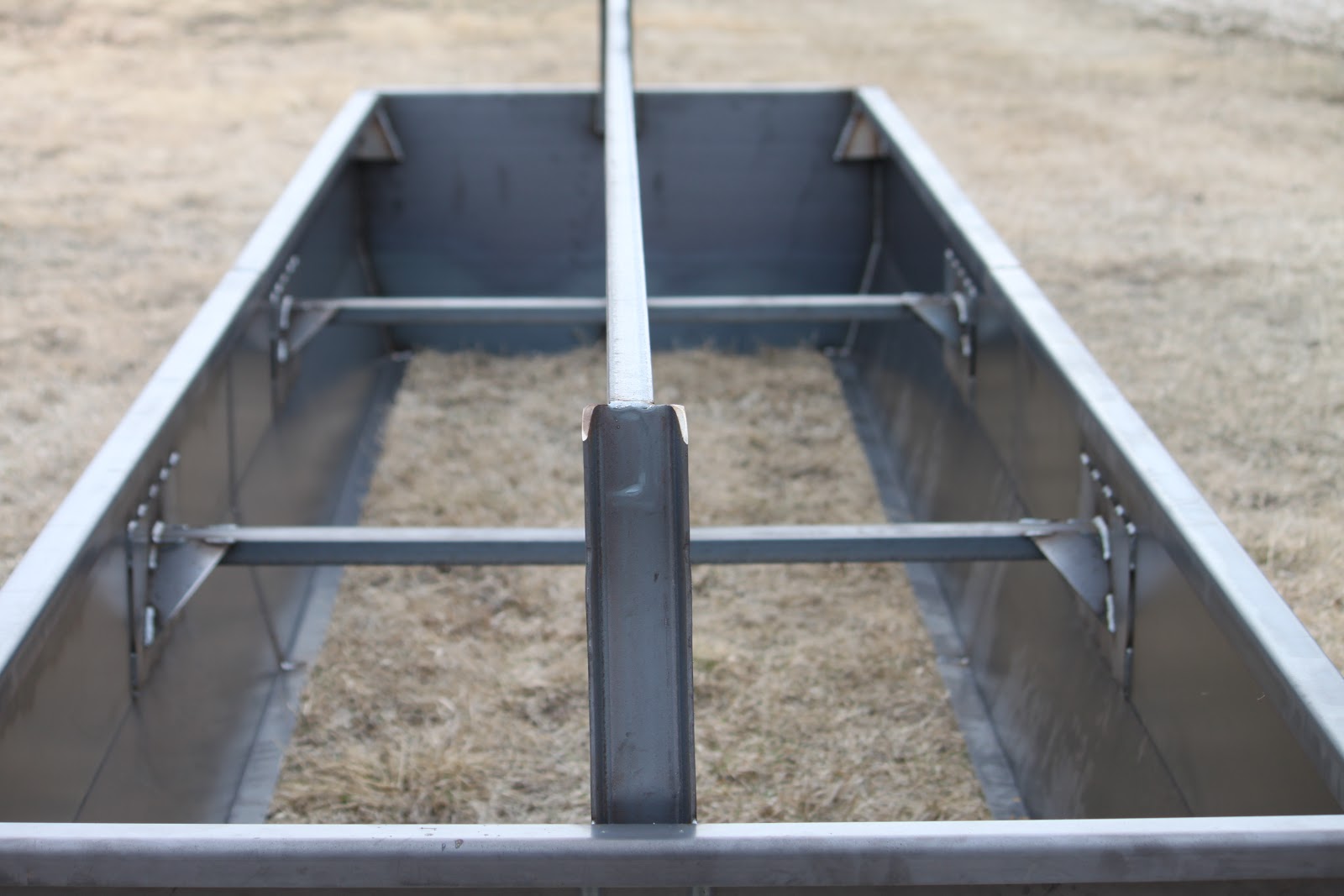

Bottomless
Bottomless bunks are made of 10 gauge sheet material and weigh approximately 750 pounds. Two center reinforced supports and gusseted corners. Top rail and supports are made of 3" channel.
Dimensions - 48" wide x 26" tall x 20’ long

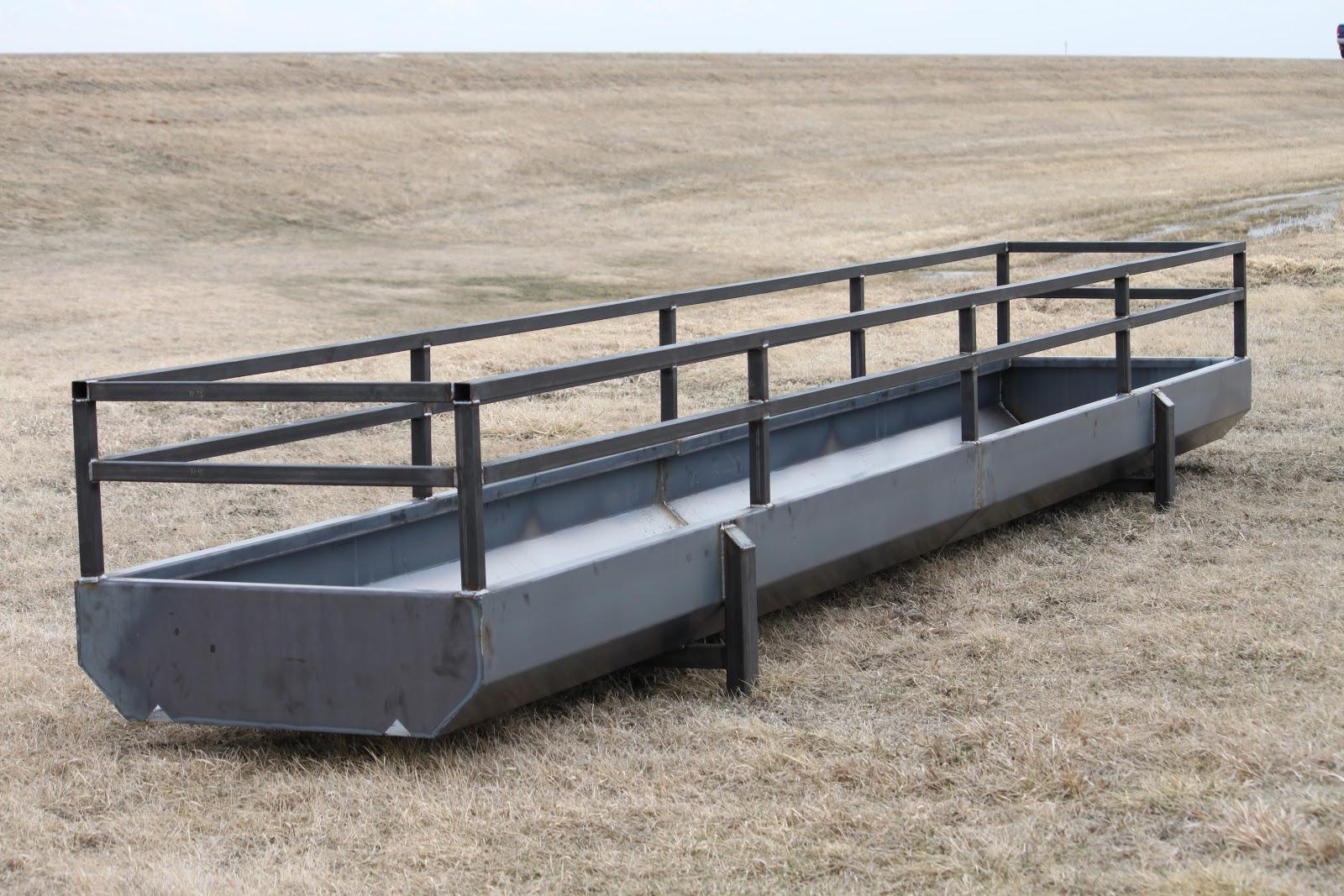

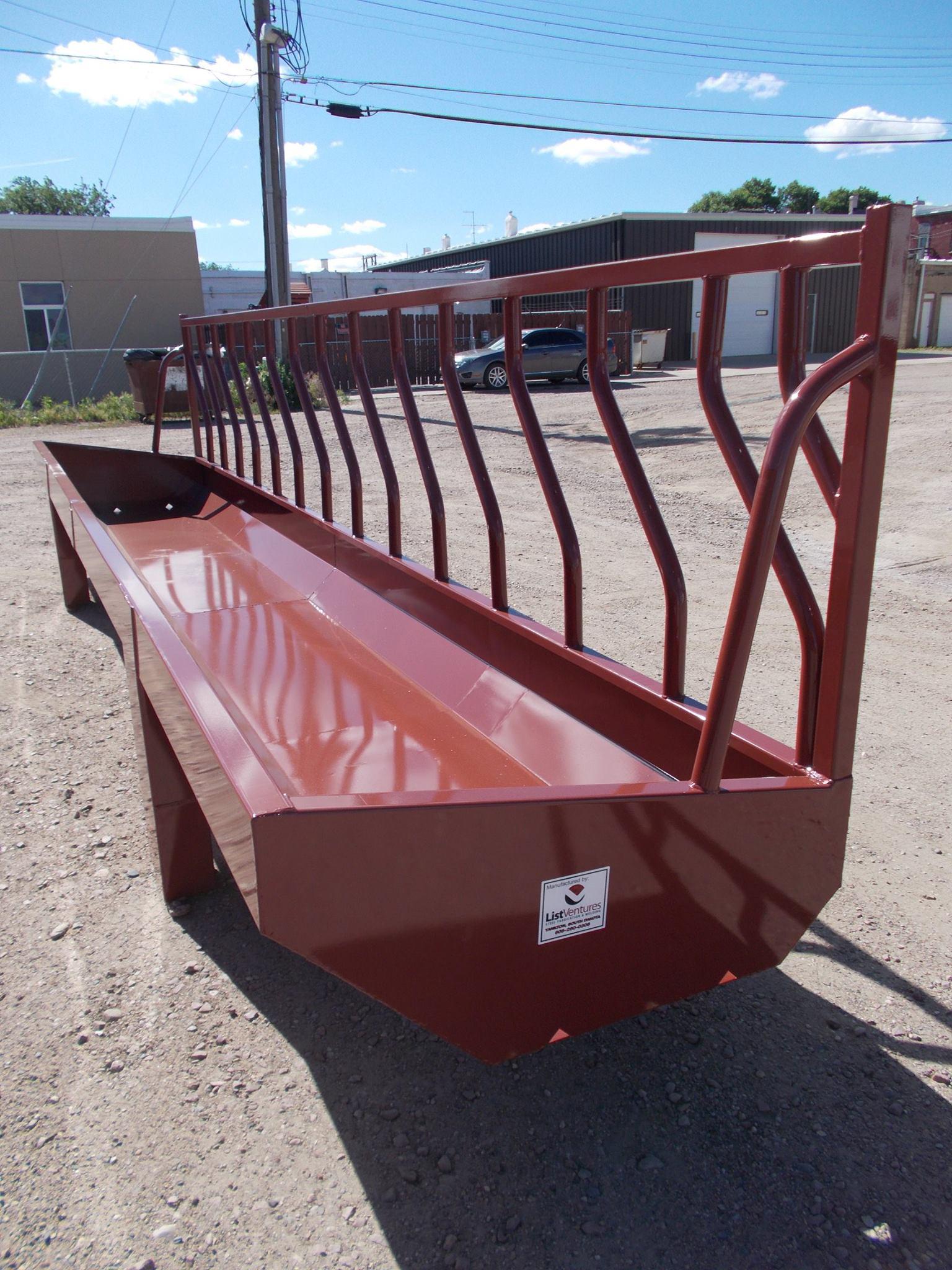

Fenceline
Cow Fenceline - The bunk is made with 10 gauge sheet material and 1-1/2" 12 gauge square tube fence. The legs are capped on the bottom with a plate to anchor them in place. Top feed saver lip. Bunk weighs approximately 1000 lbs.

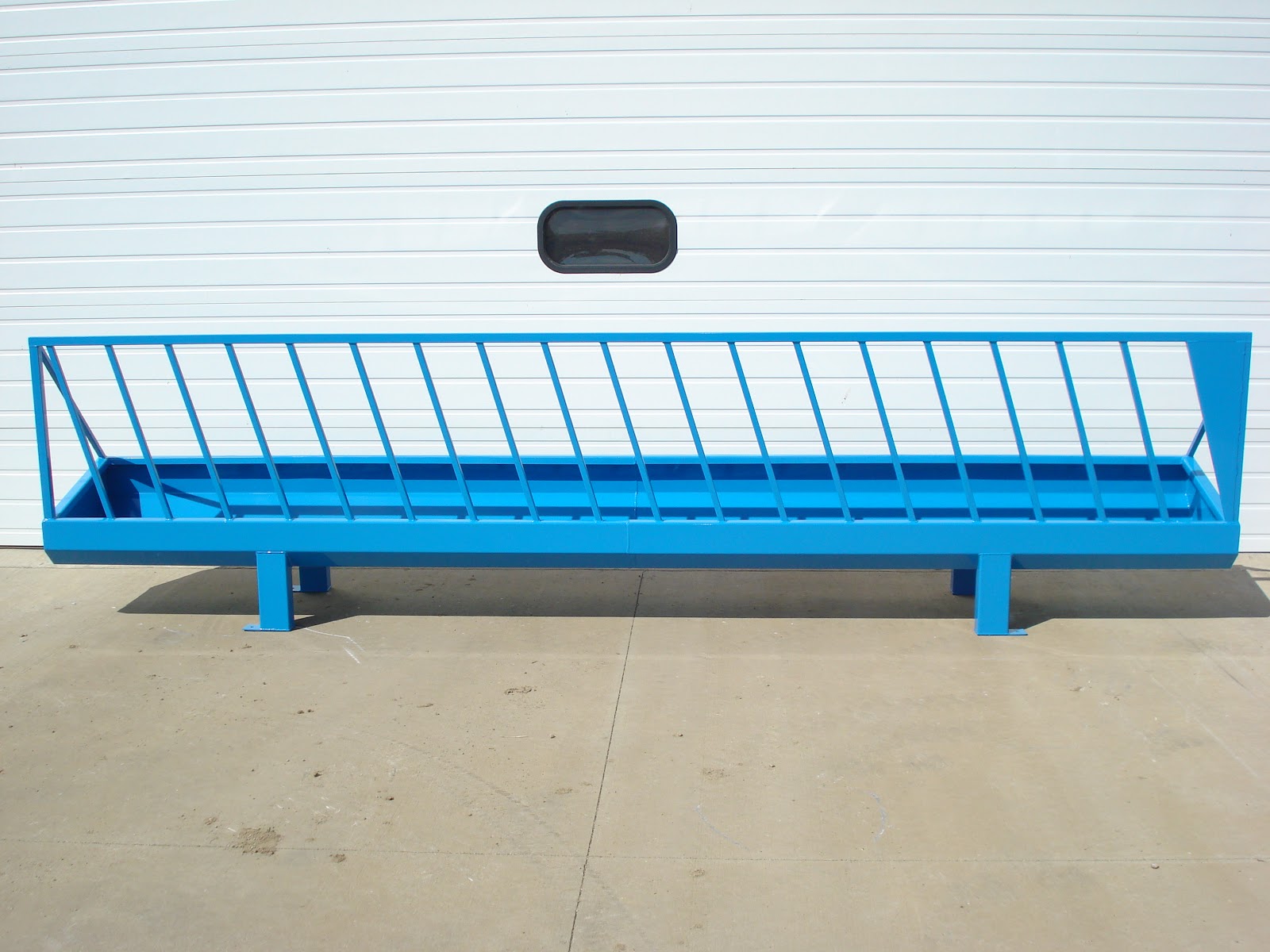

Calf / Sheep fenceline - 12 gauge bunk and tubing

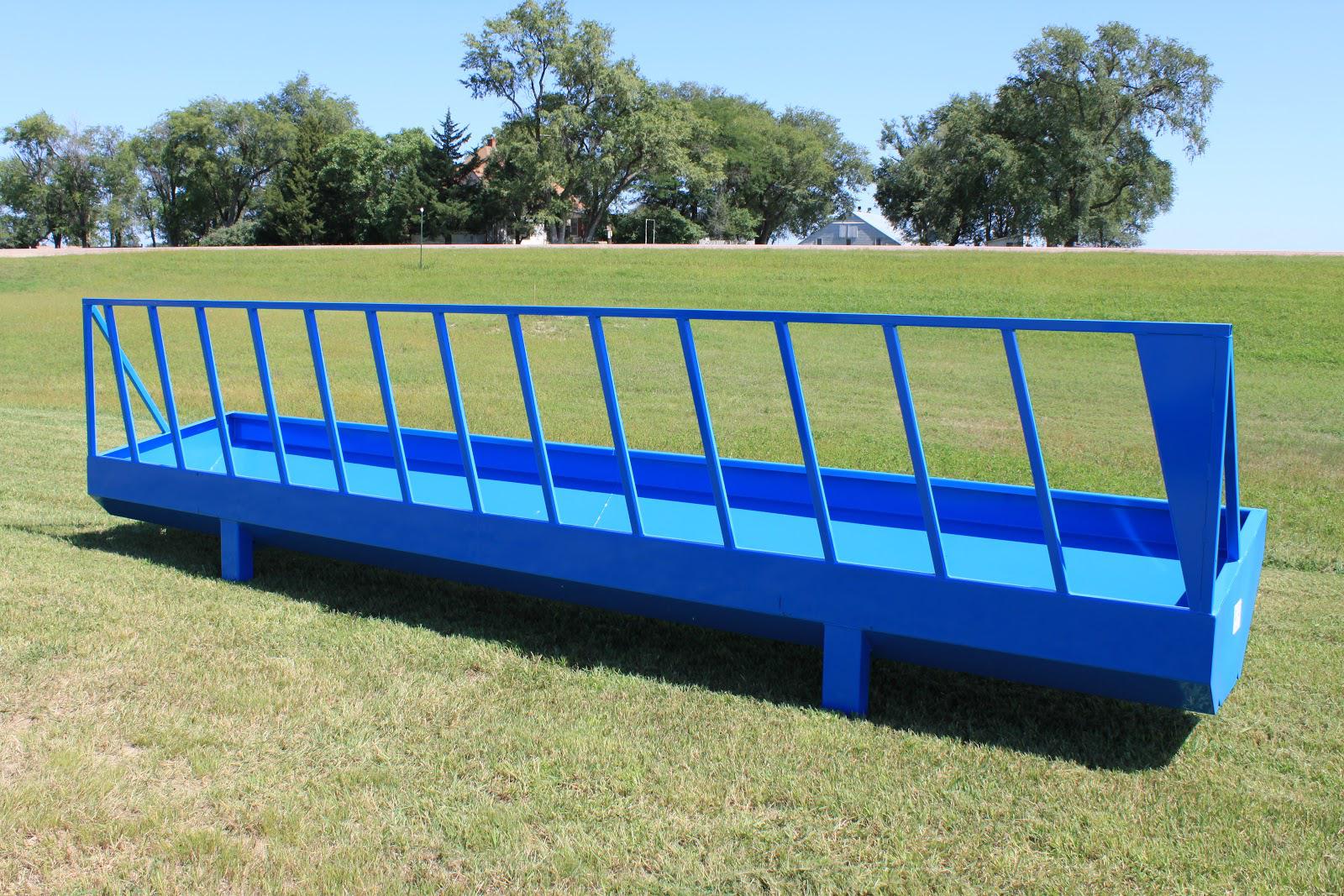

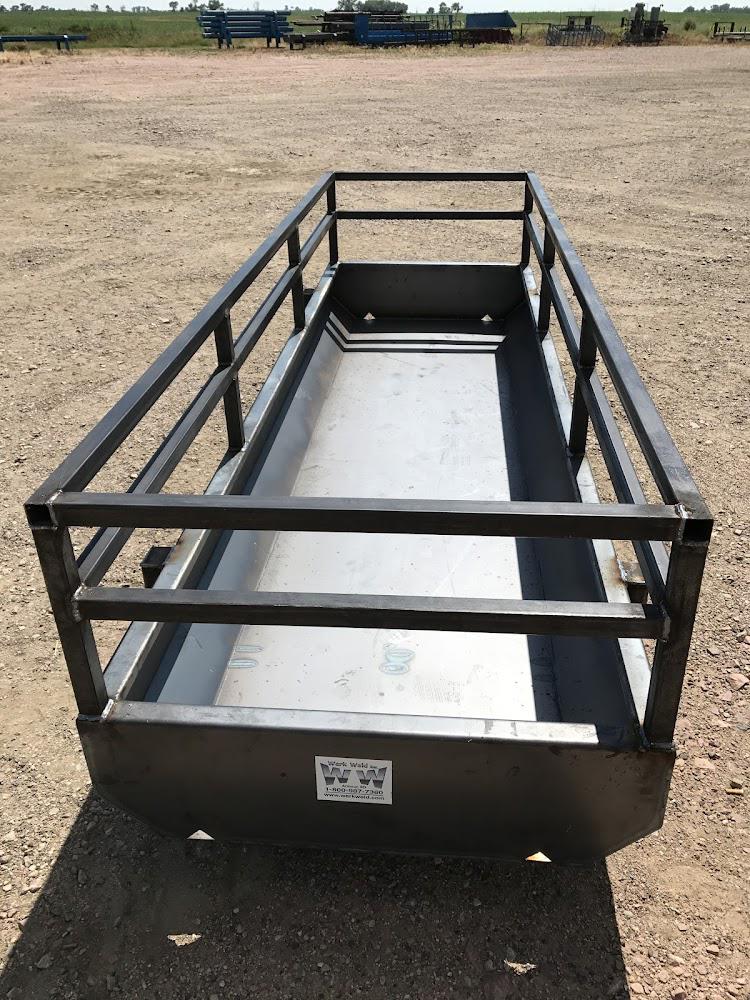

Sheep feed
The sheep bunk is made of 12 gauge sheet material. The bunk measures approximately 38" wide by 12" deep. The top feed saver lip of the bunk is 16" from the ground with the overall cage being 32" height. Available in 10’ and 20’ lengths
